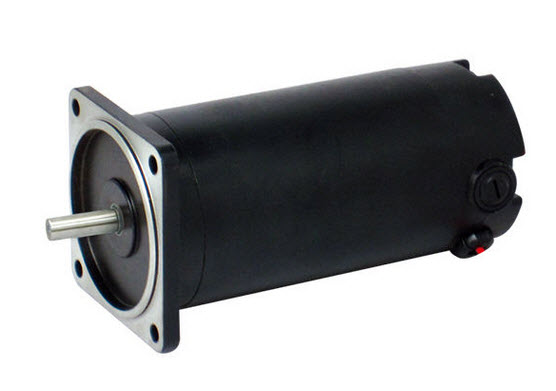

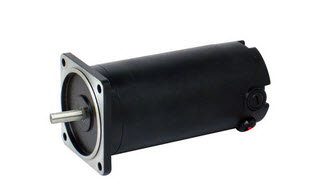

motor electric 90w













Quick Details

  • Usage: Boat, Car, Electric Bicycle, Fan
  • Certification: CE, UL
  • Type: dc motor
  • Torque: 478Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1800rpm
  • Continuous Current(A): 1.41A
  • Output Power: 90W
  • Voltage(V): 90V
  • g.w: 6kg
  • carton size: 28*26*15cm

Specifications

small electric motor
1)UL,CE
2)90v,90w,1800rpm,Dia:82mm.
3)High efficiency, easy adjust speed,low price
4)Widely used

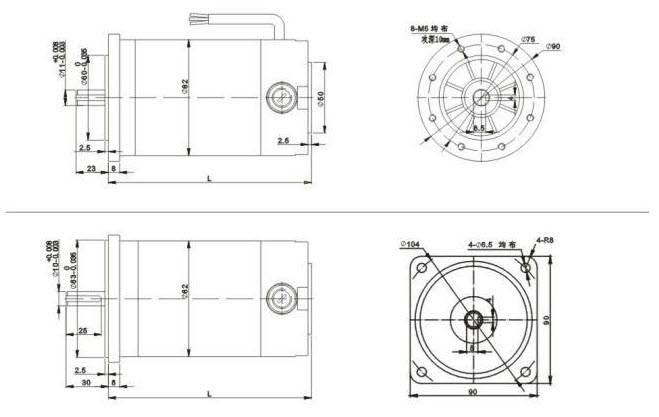

◊ Drawing

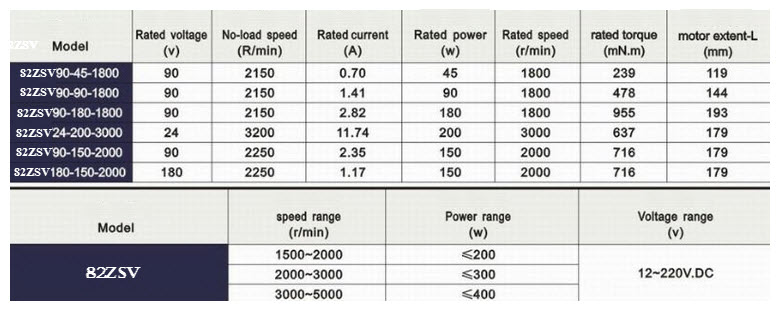

◊ Specification

◊ Model Description

113

ZSV

220

-

300

-

1800

1.

2.

3.



4.



5.


1.Body OD:113-fuselage outside diameter of 113mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:220-220V.DC input

4.Power:300-rated output power of 300HP

5.Speed:1800-Rated speed 1800rpm
